Corvette battery tender: the maintainer to buy and how to hook it up

Published

A gray C8 Corvette E-Ray seen head-on at an auto show, showing the long front hood over the front trunk.
On most C8s, the always-live outlet for a maintainer is under that front hood. This one is an E-Ray, whose lithium 12-volt battery needs a GM-approved charger. Photo: Erik Drost, CC BY 2.0, via Wikimedia Commons

If a Corvette sits out the winter in the garage, its battery needs looking after, and GM’s own owner’s manuals say so. The job takes nothing more exotic than a battery maintainer: one small box, plugged into the garage wall, that keeps the car ready to fire through a long layoff. Owners have noticed something about that box. The one GM sells with the crossed flags on it is, by their accounts, a CTEK wearing a Corvette logo.

So the choice is simple. For a C4 (1984–1996), C5 (1997–2004), C6 (2005–2013), C7 (2014–2019) or C8 (2020–present) with an ordinary lead-acid battery, buy the CTEK MXS 5.0. On a budget, the Battery Tender Plus does the job. On a C7 or most C8s, either one plugs into the one outlet GM names for a maintainer, with a plug adapter. The E-Ray (the C8 hybrid) is the exception: its 12-volt battery is lithium-ion and needs a GM-approved lithium charger.

Section 01

A Corvette that sits for weeks needs one

Every 1994–2005 owner’s manual checked says to take off the negative cable if the car won’t be driven for 25 days or more. The 2013 manual allows that or a trickle charger for extended storage. From the 2014 C7 on, through the 2020 and 2025 C8 manuals, GM recommends its battery maintainer package.

The reason is chemistry. GM’s bulletin 15-06-03-001 says sulfation (lead sulfate building up on the plates) starts below 80% charge in as little as two weeks, and a battery left deeply discharged for more than 60 days may be permanently damaged. For AGM (absorbent glass mat) batteries, GM’s AGM bulletin says the damage from sitting at a low charge can’t be reversed.

And Corvettes do go flat while parked. Owners of 2005 C6s have told NHTSA of cars dead after four to six days, and a GM bulletin says a manual-transmission 2005 drains its battery unless it’s shut off in reverse. Newer cars have their own bulletins, up to a drain after over-the-air updates on 2024–2025 cars. A maintainer is for a healthy car that sits, and it won’t cure a fault. A Corvette that goes flat in days, or won’t stay charged on a maintainer, has a drain to find.

Cars that get driven are a closer call. Some C8 owners plug in whenever they park; others report starting fine after three to five weeks, and GM’s manuals give no day count after 2005. This site’s call: a Corvette driven weekly can do without one. One that sits for weeks should have one: cheap insurance for a car built to run hard come spring.

Section 02

A maintainer is not a trickle charger

The names get swapped, but they’re different tools. A basic trickle charger feeds a small, steady current whether the battery needs it or not. Consumer Reports says those need watching and disconnecting by hand, and a technician writing for Family Handyman says one left unattended will overcharge a battery. A maintainer (also sold as a smart charger or tender) charges the battery, then turns itself on and off as needed to hold it full, so it can stay connected all season. “Battery Tender” is one maker’s brand name that owners use for the whole category.

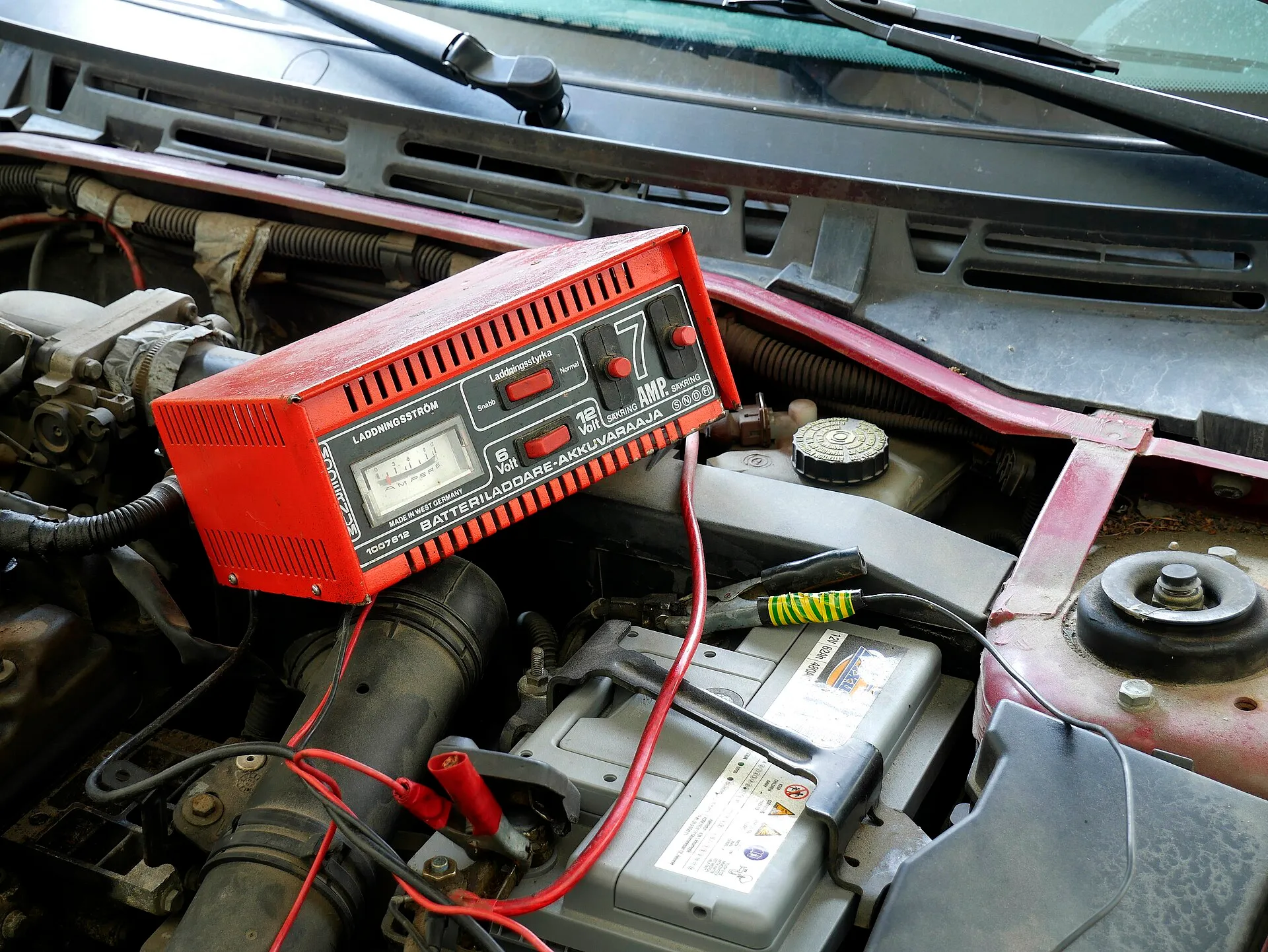

An old red manual battery charger with an ammeter and a charge-rate switch, sitting in an engine bay with its clamps on the car's battery.
An old-school manual charger with a rate switch and an ammeter. Fine for a recharge; a maintainer is the tool you leave connected all winter. Photo: Santeri Viinamäki, CC BY-SA 4.0, via Wikimedia Commons

Section 03

The pick: CTEK MXS 5.0

Stop shopping. The CTEK MXS 5.0, part 40-206 (aftermarket), is the maintainer to buy for any Corvette with a lead-acid battery: every C4 to C7, plus the C8 Stingray and Z06. Plenty of boxes will keep a battery from dying. Of course you want the one with a setting for the AGM battery you might fit next.

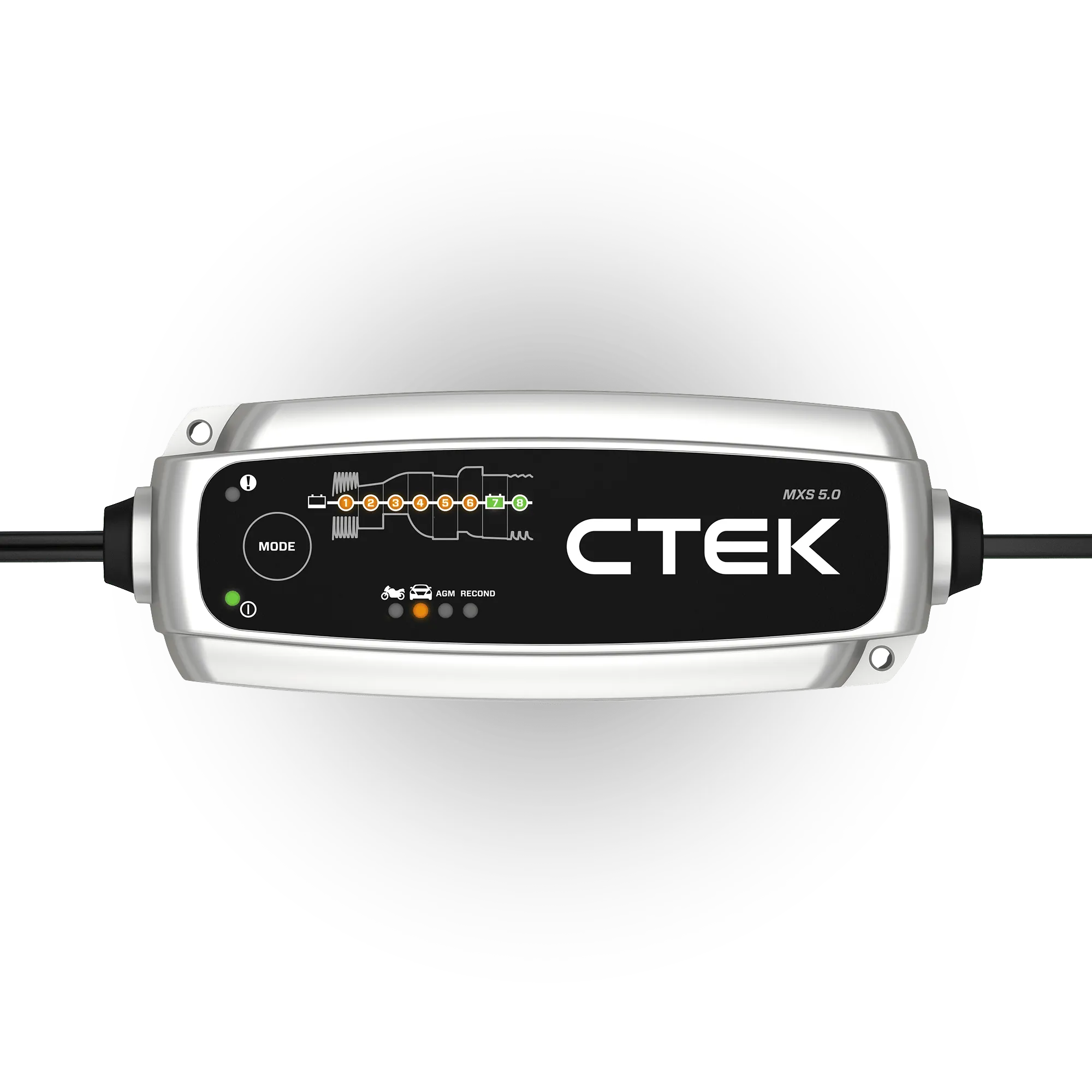

A CTEK MXS 5.0 battery charger: a silver and black unit with a mode button, a row of charge-step lights and AGM and Recond indicators, cables leading out both ends.

Image: CTEK

CTEK MXS 5.0

The pick for any lead-acid Corvette: an AGM mode, 4.3 A for batteries of 1.2–110 Ah, and owners say GM's own Corvette charger is a CTEK.

Check price on Amazon Paid link

Why it earns the spot:

  • Same maker as GM’s. Owners in thread after thread say GM’s Corvette-branded charger is a CTEK with a Corvette logo (GM doesn’t say so), and those who have run both call them basically the same.
  • It has an AGM mode. Many C5 and C6 owners have switched to AGM batteries, and GM says an AGM needs a charger with an AGM setting to avoid overcharging.
  • It’s sized for a car battery. CTEK rates it at 4.3 A, for batteries of 1.2–110 Ah, with temperature compensation (it adjusts for the weather). Clamps and ring terminals (eyelets that bolt to the battery) both come in the box.
  • Owners name it. CTEK and Battery Tender are the brands that come up most in CorvetteForum’s C8 recommendations thread, and the MXS 5.0 is the model named most there.

One mode to leave alone: CTEK’s manual says not to use Recond, a 15.8 V step, on AGM or gel batteries, and GM caps AGM charging at 15.5 V.

On a C7 or C8, add CTEK’s CONNECT CIG PLUG, part 56-263 (aftermarket), so the charger plugs into the car’s outlet. CTEK notes the socket must stay powered with the ignition off, as the C7 and C8 maintainer outlets are.

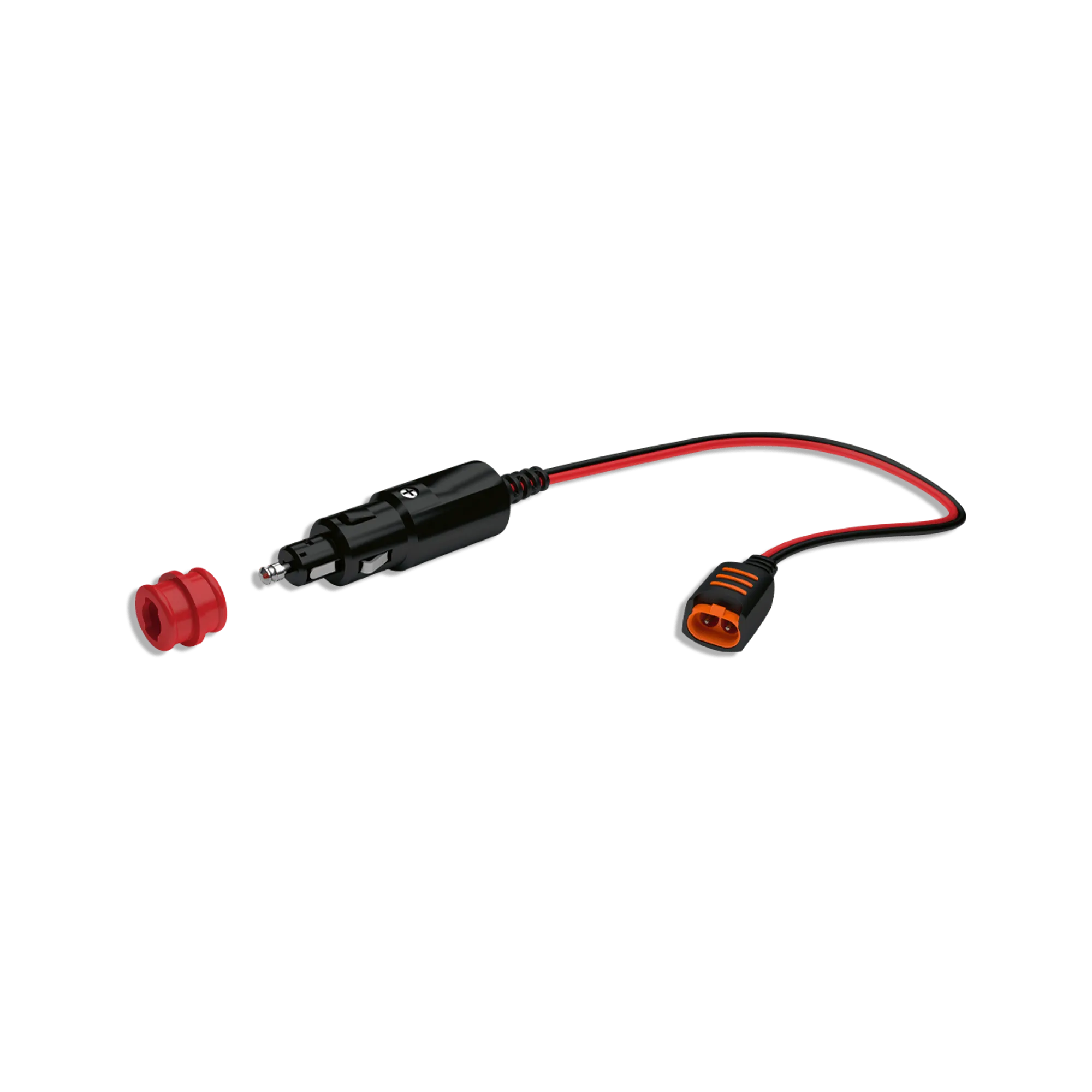

CTEK's CONNECT CIG PLUG: a black 12-volt accessory plug on a short red and black lead ending in an orange quick-connect, with a red sleeve beside the plug.

Image: CTEK

CTEK CONNECT CIG PLUG

Lets the CTEK plug into the always-live outlet GM names for a maintainer: the rear cargo outlet on a C7, the frunk outlet on most C8s.

Check price on Amazon Paid link

Section 04

The budget pick: Battery Tender Plus

The cheap way works fine here, as long as the battery is the ordinary flooded kind. The Battery Tender Plus, 12 V 1.25 A, part 021-0128 (aftermarket), comes from a brand Corvette owners have used for years, from C5s to C8s. Battery Tender rates it for batteries up to 80 Ah, flooded, AGM or gel, with alligator clips and a ring-terminal cable included. It runs one program with no battery-type setting, so for an AGM battery the CTEK is the by-the-book choice.

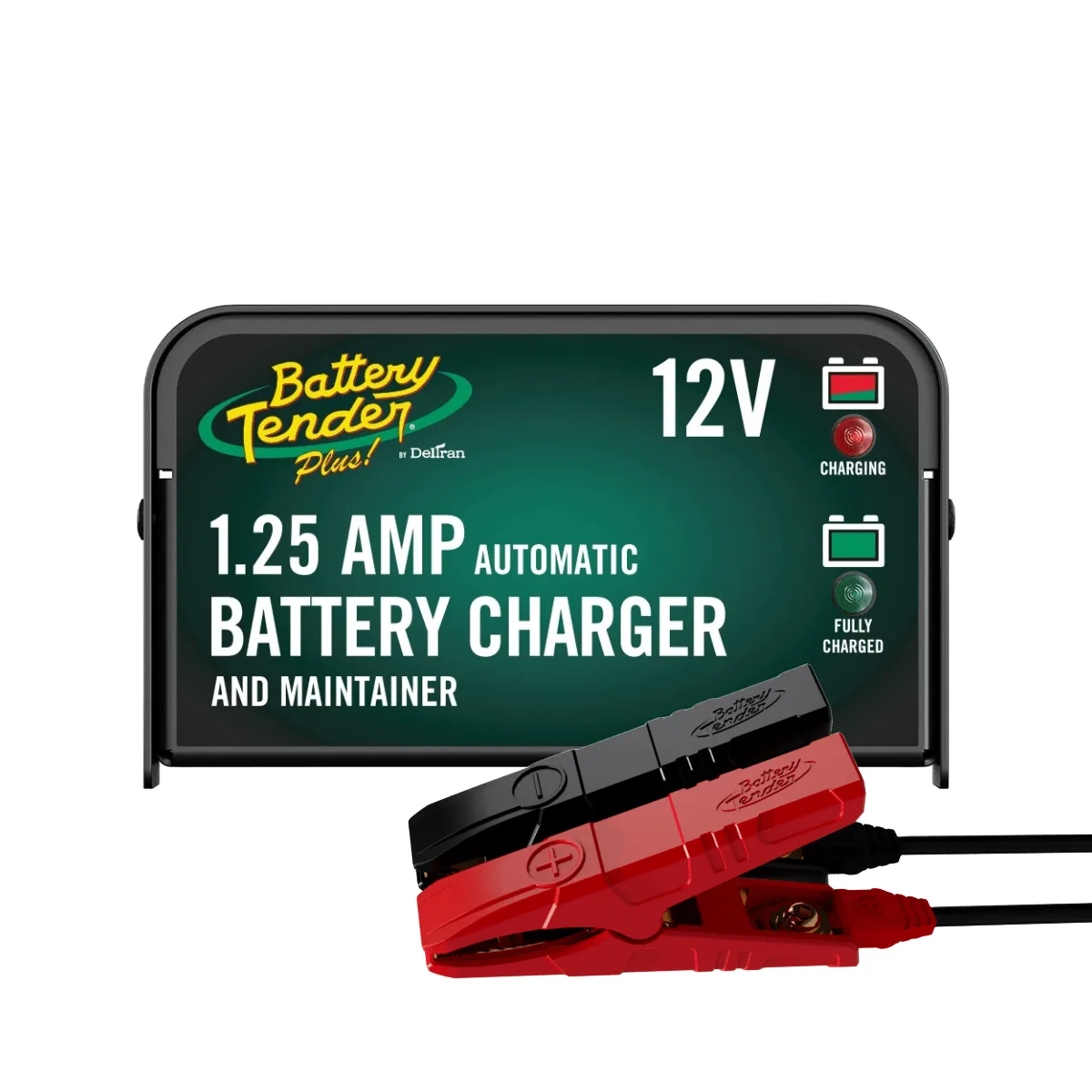

A Battery Tender Plus 1.25 amp charger with a green face and charging and fully charged lights, with red and black alligator clips in front.

Image: Battery Tender

Battery Tender Plus 12 V 1.25 A

The budget pick. Rated for batteries up to 80 Ah, flooded, AGM or gel, with clips and a ring-terminal lead. One program only, so an AGM battery is better off on the CTEK.

Check price on Amazon Paid link

Skip the smaller Battery Tender Junior, though some owners use one. Its maker sizes it for batteries of 3–30 Ah and sends bigger batteries, or vehicles with a high parasitic draw (power used with the car off), to the Plus. On a C8, the CTEK’s 4.3 A is the safer bet. A ZR1 owner says a Plus run through the diagnostic port wasn’t strong enough, and that Battery Tender’s support told him the car needs at least 4.3 A; another C8 owner reports no trouble with a Plus.

On a C7 or C8, the Plus needs Battery Tender’s 12 V outlet adapter cable, part 081-0069-5 (aftermarket): a plug for the car’s outlet with a 7.5 A inline fuse, which its maker recommends for chargers under 3 A.

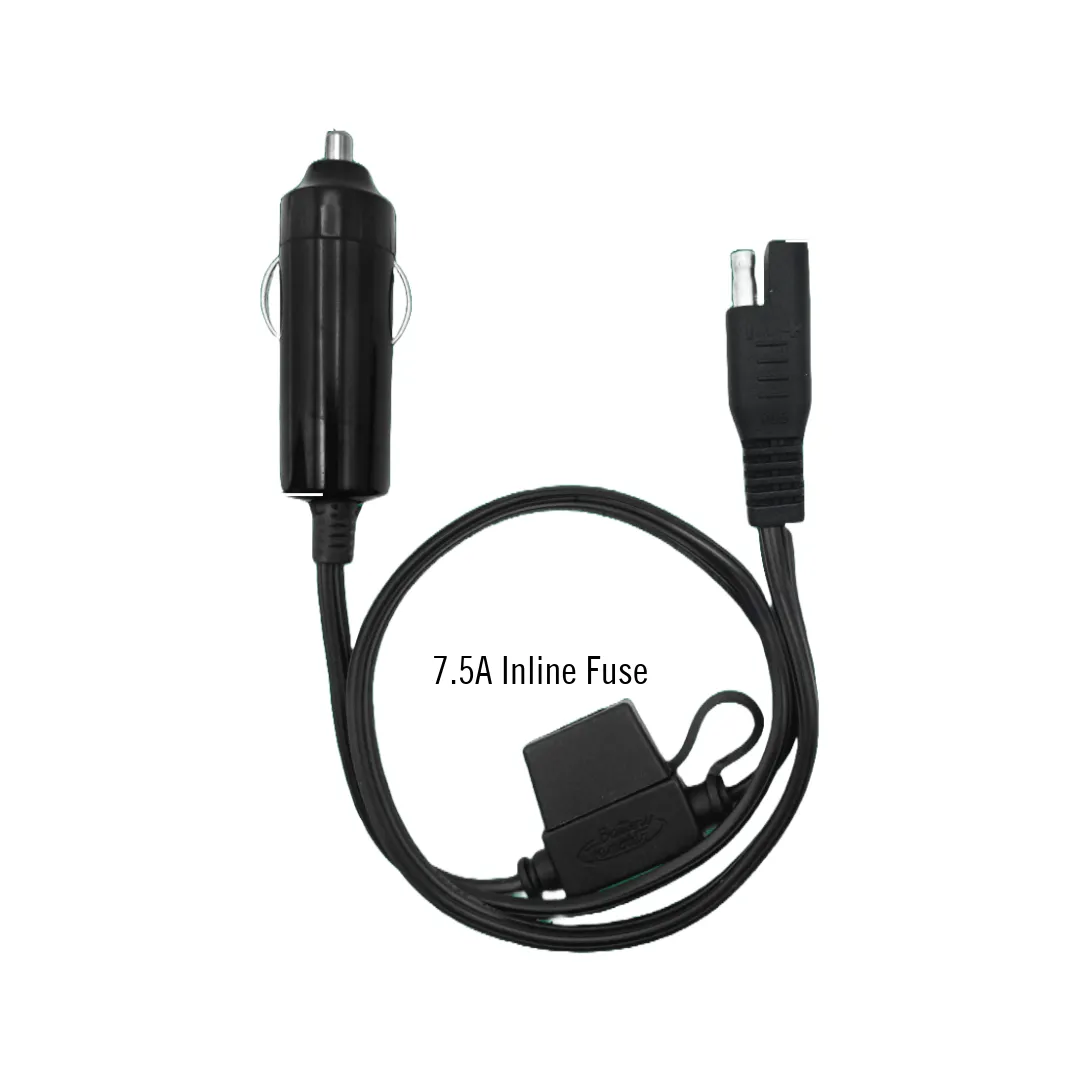

Battery Tender's 12 V outlet adapter: a black accessory-socket plug on a looped lead with an inline fuse holder and a two-pin quick-disconnect plug at the other end.

Image: Battery Tender

Battery Tender Quick Disconnect 12V Outlet Adapter Cable

What the Battery Tender Plus needs to plug into a C7 or C8's always-live outlet. It has a 7.5 A inline fuse, and Battery Tender recommends it for chargers under 3 A.

Check price on Amazon Paid link

Section 05

For an E-Ray: GM’s own charger, from a dealer

The E-Ray plays by different rules. Its 12-volt battery is lithium-ion, unlike the lead-acid batteries in other Corvettes, and GM’s TechLink warns it may be damaged if charged above 14.5 V. The 2025 owner’s manual calls for a GM-approved charger designed for lithium-ion batteries, and GM-approved charging tools only. Neither the CTEK MXS 5.0 nor the Battery Tender Plus is made for lithium.

Start with GM’s own Corvette battery charger, GM 85530676 (OEM), bought from a GM dealer, where the part number is certain. A Chevrolet dealer’s parts site lists it for 2015–2019 C7s and 2020–2026 C8s, and another GM parts seller lists it for the 2026 E-Ray, with a cigarette-style plug and alligator clips.

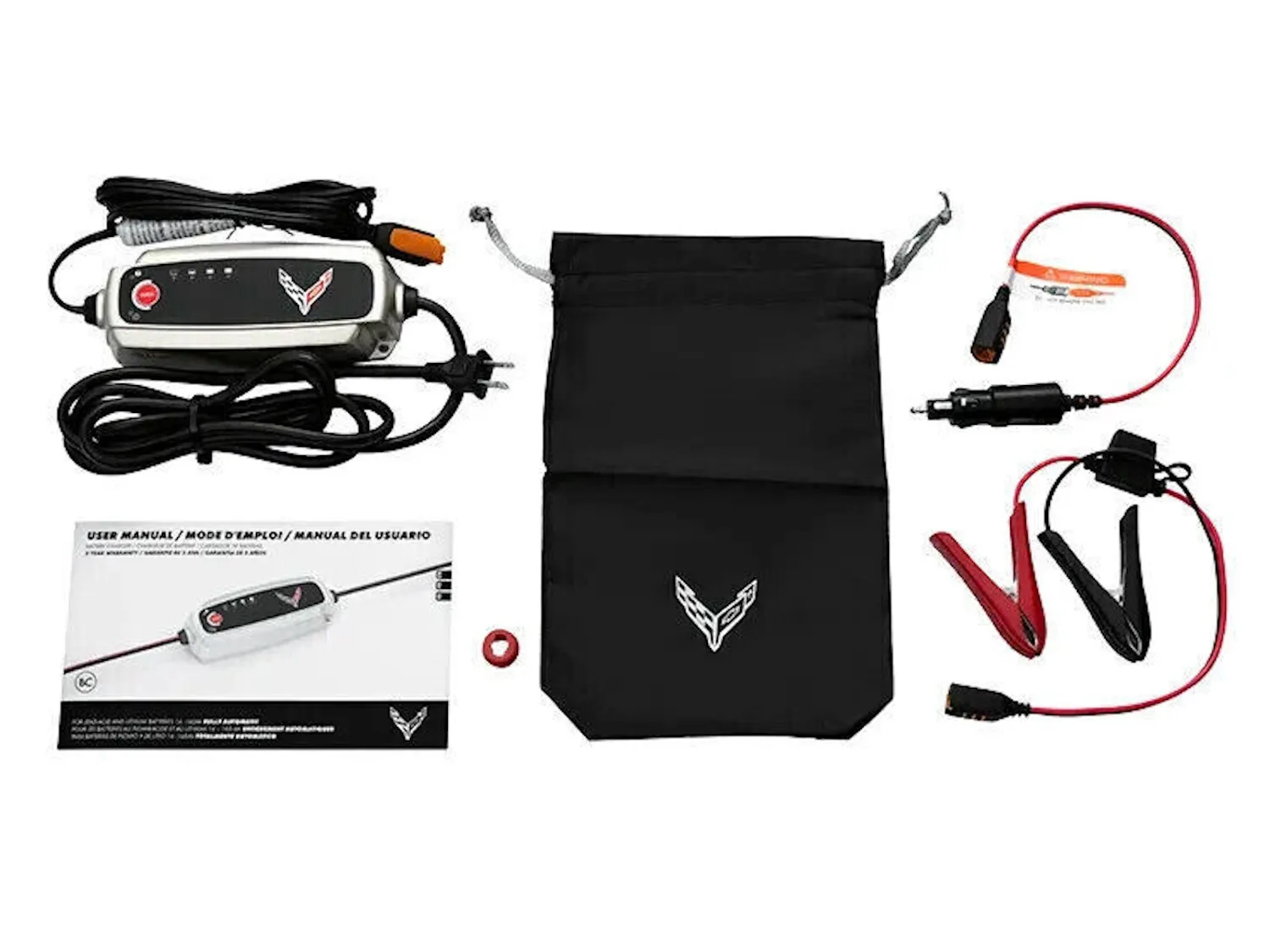

GM's Corvette battery charger kit laid out flat: the silver charger with a crossed-flags logo and its cord, a black storage pouch, the user manual, an outlet plug lead and a clamp lead.

Image: GM, via Chevy Parts Pros

GM Corvette battery charger, GM 85530676

GM's own Corvette maintainer, listed for C7s and C8s including the 2026 E-Ray. On an E-Ray, check that its manual or label says lithium first. Buy it by part number from a GM dealer.

See it at Chevy Parts Pros

Owners disagree on whether every unit handles lithium. One says the current version is a combined lead-acid and lithium charger; others treat it as lead-acid only and use a CTEK Lithium US, which isn’t GM-approved as far as this guide could find. Check that the charger’s manual or label says lithium before trusting it with an E-Ray. There’s no budget alternative here: GM says approved charging tools only.

For long storage, GM says to connect a compatible tender to the E-Ray’s 12-volt battery and keep the key fob more than 10 ft (3 m) away.

Section 06

Where to hook it up on each generation

The battery guide shows where each generation’s battery sits.

C4 (1984–1996): a ring lead at the battery, or the lighter socket

The C4’s battery sits low behind the driver-side front wheel, with side-mounted terminals. Clamps work if they bite, but a ring-terminal lead left on is tidier. C4 owners fit longer side-terminal bolts from a parts store to make room for the ring. One 1996 owner uses the underhood maxi-fuse box for positive and a master cylinder bolt for negative. Two owners in a 2024 CorvetteForum thread say the lighter socket is always live, but the owner who started it thought otherwise, so check yours first.

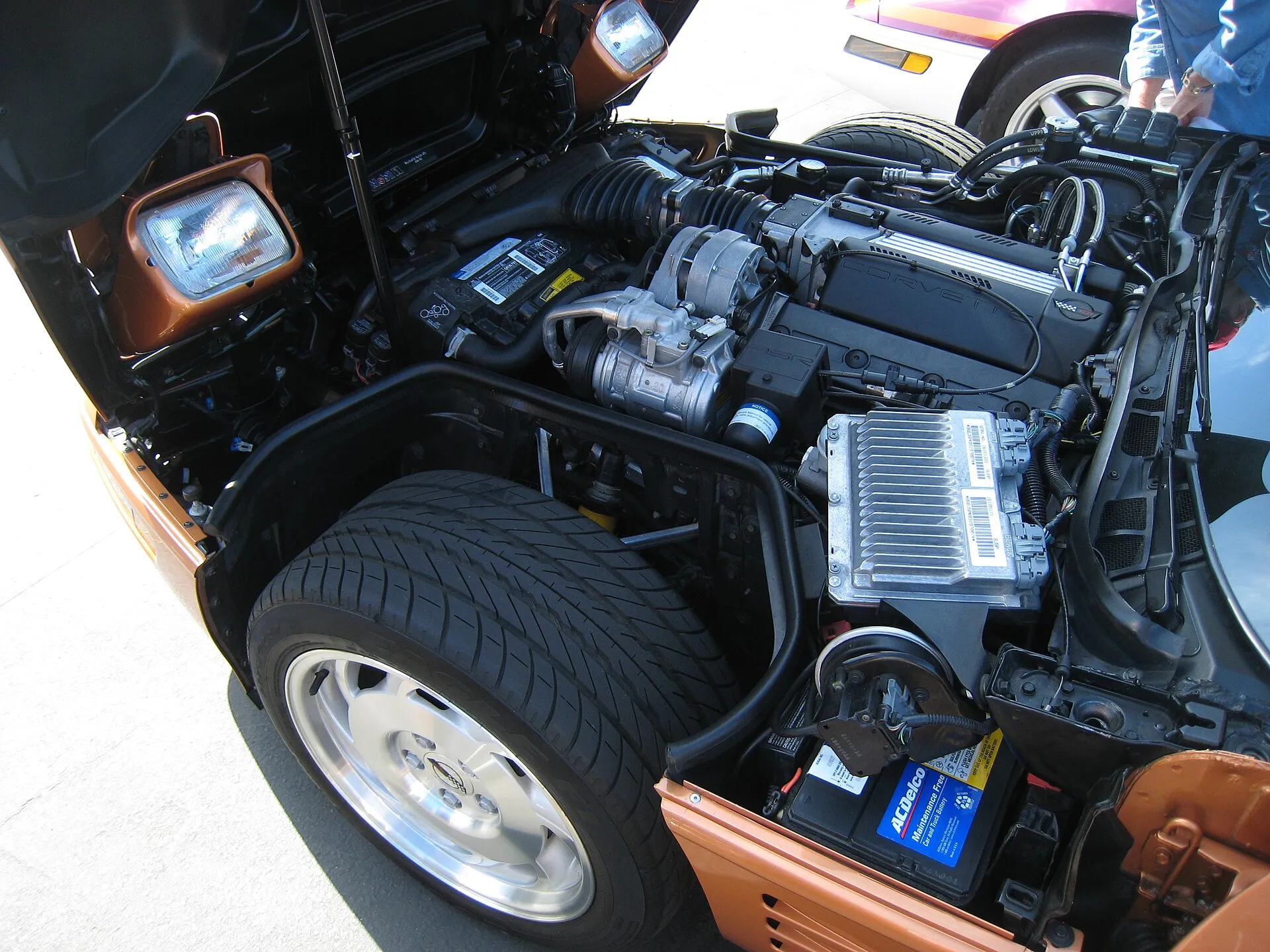

Engine bay of a copper C4 Corvette seen from the driver side with the clamshell hood up; the battery sits at the bottom right, just behind the front tire.
A C4 from the driver side: the battery (bottom right) sits just behind the front wheel, low in the bay. Photo: Kowloonese, CC BY-SA 3.0, via Wikimedia Commons

C5 (1997–2004): a pigtail on the battery

Some owners find clamps barely catch the C5’s small side-terminal bolts; others clip on for years. The tidy fix is a pigtail: a lead with a ring terminal at the battery and the charger’s plug at the other end, left in place (both picks include one). Consumer Reports’ chief mechanic prefers them to clips, with less chance of a spark under the hood. Owners bolt the ring to side bolts that have an accessory stud, or put the positive on the fuse-box stud and the negative on the frame stud. Some mount the plug by the wiper cowl so the hood can stay shut. Owners also use the console outlet, which they say stays live; GM’s manuals for these years don’t say.

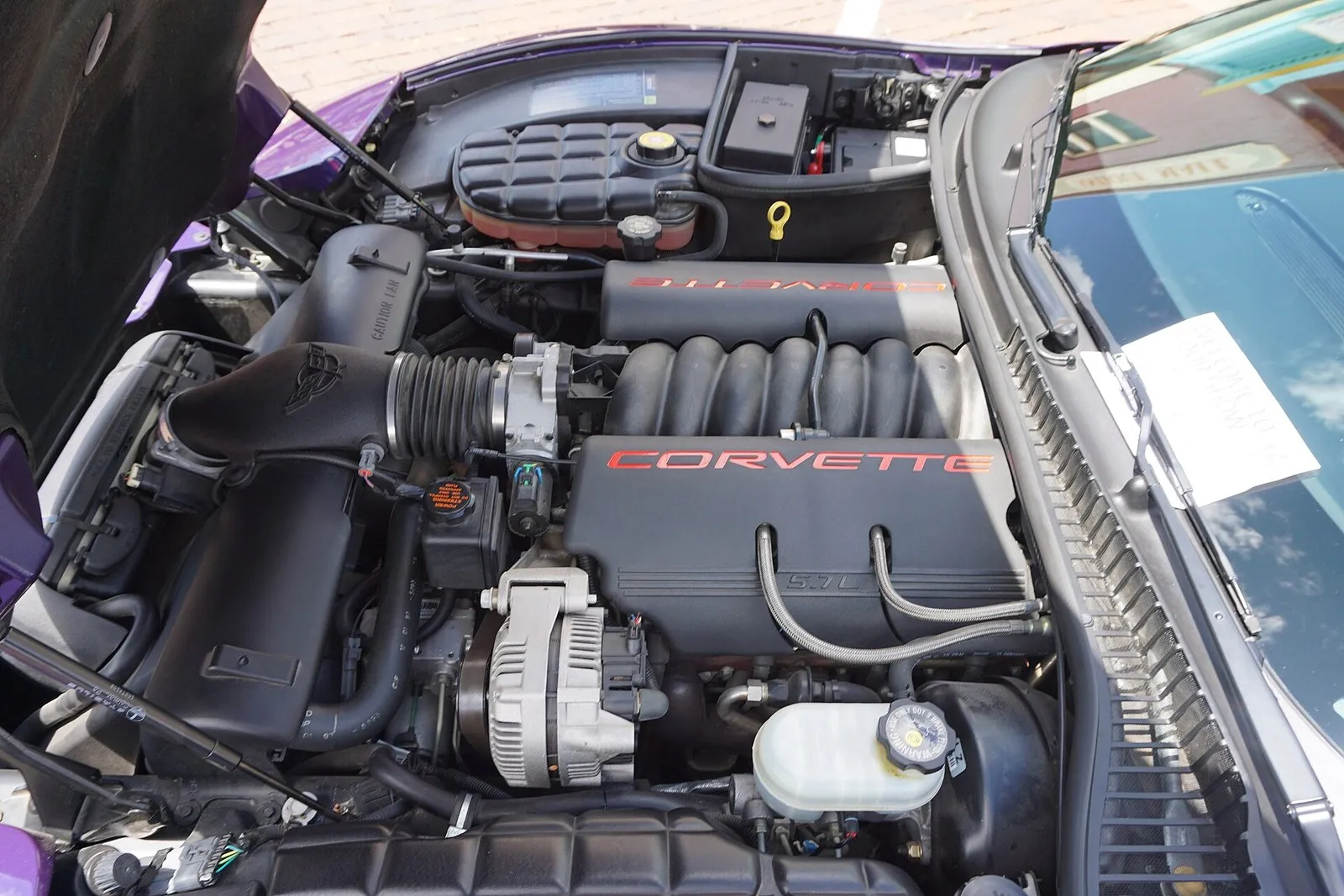

Engine bay of a purple 1998 C5 Corvette with the hood up; at the far corner by the windshield, a black fuse box sits beside the battery and its red terminal cover.
A 1998 C5: the battery (red terminal cover, top right) sits beside the underhood fuse box at the base of the windshield, passenger side. Photo: Michael Barera, CC BY-SA 4.0, via Wikimedia Commons

C6 (2005–2013): three ways in

C6 owners use three hookups. The simplest is ring terminals on the battery, which on most C6s sits where the C5’s does. The second is the console outlet: GM’s 2013 manual says power is always supplied to it, up to 20 A, and owners of earlier cars report the same, running the cord out under the door. But unlike later manuals, the 2013 one doesn’t name that outlet for a maintainer, and it warns against leaving anything plugged in while the car isn’t in use. So for a C6 that sits all winter, this site’s call is a lead at the battery.

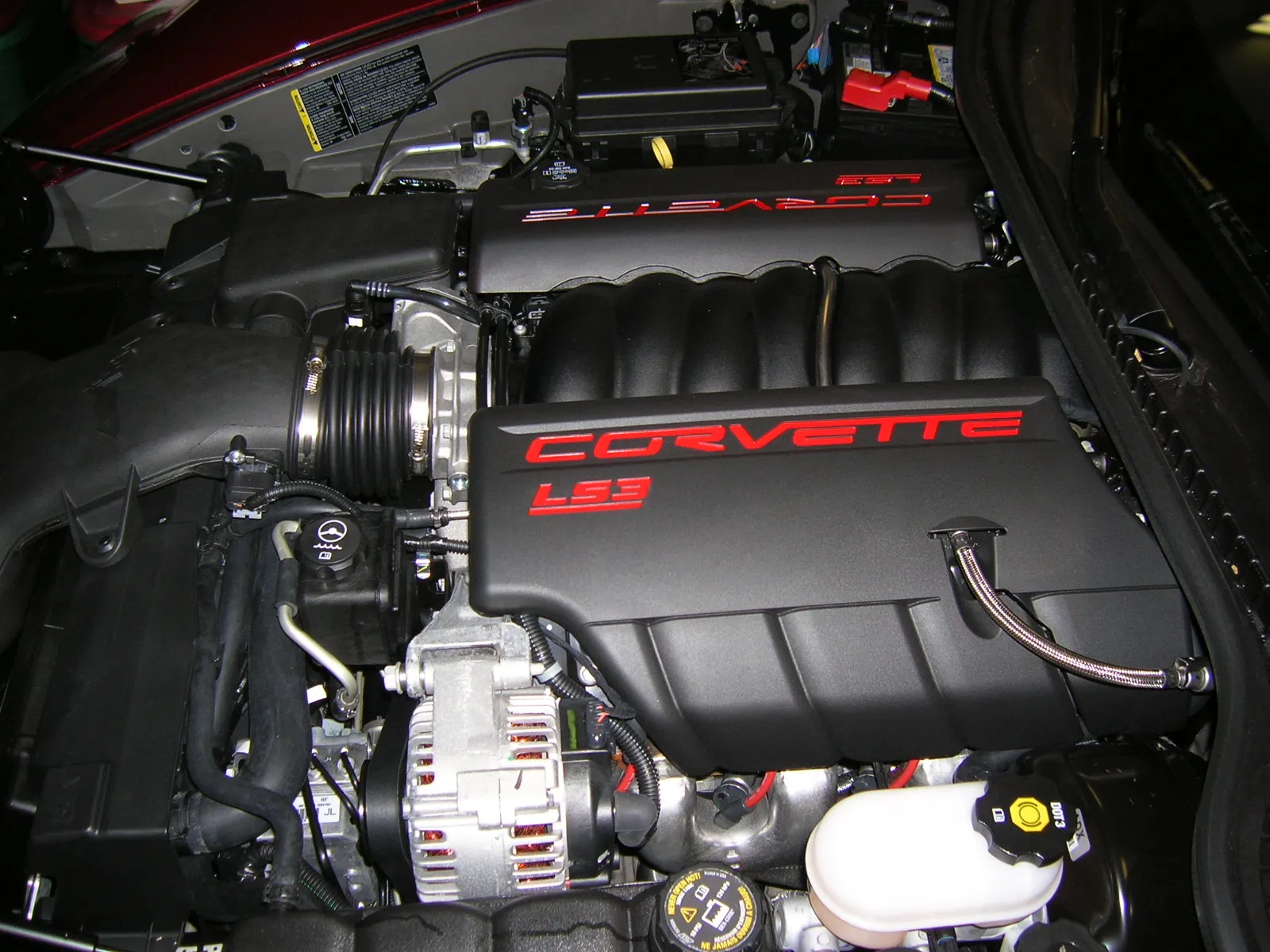

Engine bay of a 2008 C6 Corvette with a black LS3 engine cover; at the top, against the cowl, the black underhood fuse block sits next to the battery with a red positive terminal cover.
A 2008 C6: the underhood fuse block (top center) and the battery with its red positive cover (top right), both against the cowl. Photo: Junglecat, CC BY-SA 4.0, via Wikimedia Commons

The third is for dry-sump cars (the oil lives in a separate tank): the Z06, ZR1, manual Grand Sport coupe and 427 Convertible, which carry the battery in the rear. GM gives them a remote positive terminal under the underhood fuse block cover and a remote negative under the engine cover, below the oil fill cap, for jump starting. Owners clip maintainers there too. One early Z06 owner couldn’t get a Battery Tender to charge there and used the battery in back instead.

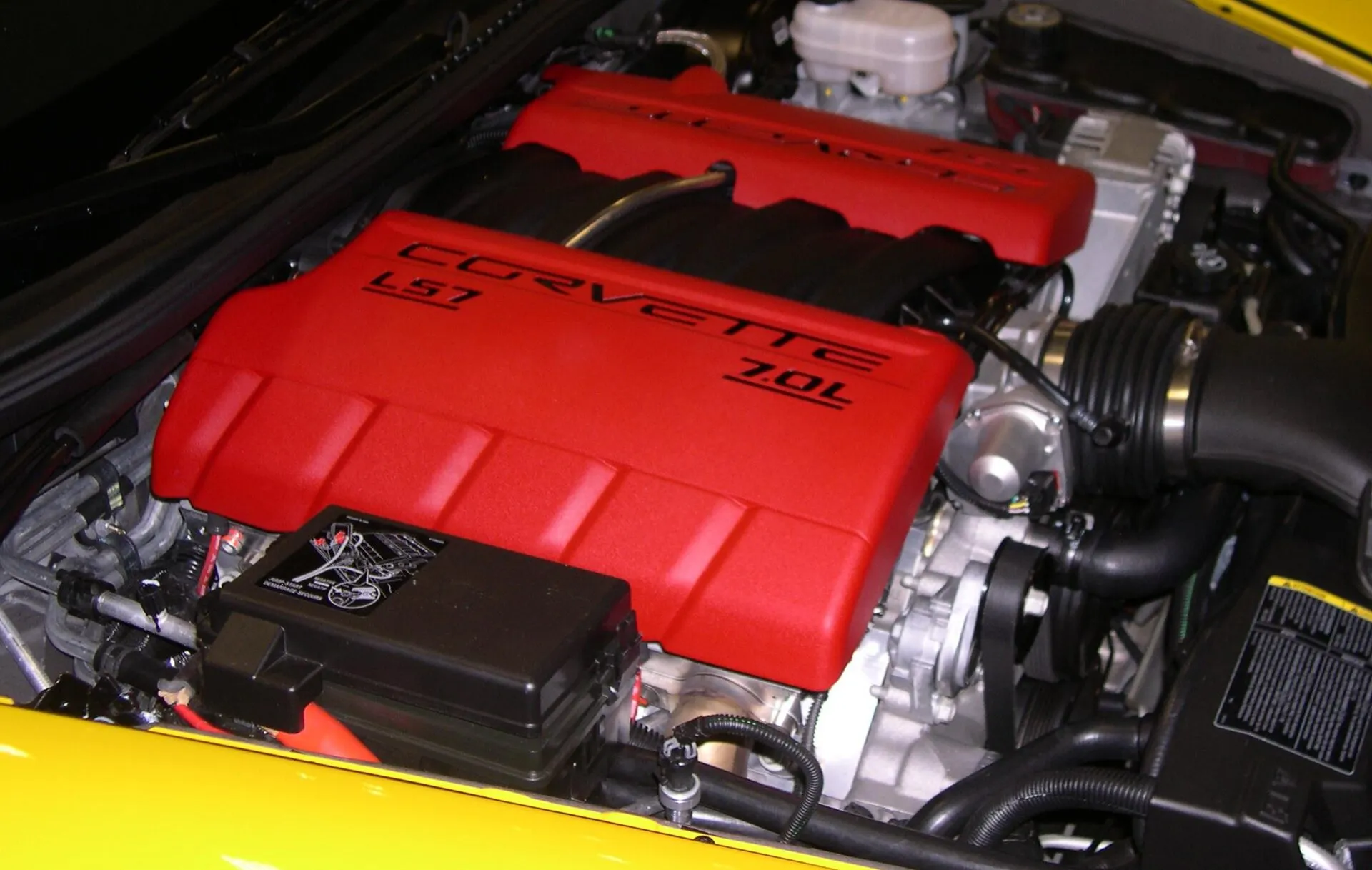

Engine bay of a yellow 2006 C6 Corvette Z06 with a red LS7 engine cover; in the foreground, the black underhood fuse block carries a printed jump-start diagram and a thick red cable.
A C6 Z06 keeps its battery in the back. GM's remote positive jump terminal is under this underhood fuse block cover, and many owners clip a maintainer on up here. Photo: Sfoskett~commonswiki, CC BY-SA 3.0, via Wikimedia Commons

C7 (2014–2019): the rear outlet only

The 2014 owner’s manual is blunt: plug the battery maintainer into the rear accessory power outlet only. That one is powered at all times, up to 20 A, while the front outlet shuts off with the ignition. It sits at the right rear of the cargo area, and owners say GM’s factory battery protection option, a CTEK-type maintainer, plugged in there too.

Yellow C7 Corvette Stingray coupe seen from above and behind at an auto show, showing the glass rear hatch over the cargo area.
On a C7, the maintainer plugs into the always-live outlet in the rear compartment, under that hatch. Photo: Tuner tom, CC BY-SA 3.0, via Wikimedia Commons

C8 (2020–present): the frunk outlet

On a C8, the maintainer goes in the outlet in the front trunk (the frunk). GM’s 2020 manual says it is powered at all times and the only one to use, while the glove-box outlet is live only with the ignition on or in accessory mode. The 2025 manual says the same for the Stingray, Z06 and E-Ray, and asks for a “GM Approved battery maintainer” without naming a part number.

Owners of some model years report slots in the frunk weatherstrip that let the lid close over the cord; a 2020 owner found none and runs it under the front fascia. An unlatched frunk is a reminder, not a lockout: GM’s recall 20V489000 found 2020 cars could be driven with it unlatched, and the fix limits speed to 26 mph.

2025 and later ZR1: owners report no always-live outlet in the frunk or trunk, and the glove-box outlet didn’t work for two of them. One says GM’s kit for the 2026 ZR1 includes battery clamps, and owners fit a pigtail at the battery. This guide couldn’t check a ZR1 owner’s manual or find a ZR1X owner’s report.

Section 07

Leave it connected, but check on it

A proper maintainer can stay on all winter. Battery Tender says the Plus holds a battery full indefinitely without overcharging, and C7 owners leave theirs on every winter. GM’s C7 and C8 manuals name an outlet for the maintainer but warn not to leave electrical equipment plugged in when the car isn’t in use, because it could catch fire. This site’s reading of both: a maintainer built for the job, in the outlet GM names, and nothing else.

Chargers do occasionally fail. One owner’s tender shorted and boiled over his battery, and a C8 owner has seen maintainers overcharge and fail to charge. Three habits cover it:

  • Keep the charger where you can see its lights, outside the car, as owners do. GM’s Corvette charger manual says to unplug it if the full-charge light isn’t on after 50 hours, one owner reports.
  • Leave a reminder. Owners leave the hood resting unlatched, or a window down with the cord wrapped around the shifter. One owner who ran over his own plugged-in charger now always leaves one.
  • Never charge a frozen battery, GM says. An AGM battery below about half charge can freeze, one more reason to keep it topped up.

If you disconnect the battery instead, GM’s manuals say to reset memory settings and re-index the power windows afterward.

For the cover that goes over the car while it sits, see the car cover guide. The payoff comes on the first drive of the year: you hit the starter, and America’s sports car barks awake like it never sat a day.
