C6 Corvette Z06 buyer's guide (2006–2013): the LS7, the valve guide question and what to check

GM didn’t just drop a bigger engine into a coupe. Per GM’s 2006 release and the GM Heritage Center’s 2006 vehicle information kit, the Z06 got its own:

• Structure. An aluminum frame with one-piece hydroformed rails, a magnesium front cradle and roof panel, carbon fiber front fenders, and floors of carbon fiber skins over balsa wood. The roof is fixed, for rigidity.
• Engine. Titanium rods at 464 grams each, almost 30% lighter than the LS2’s, sodium-filled exhaust valves, and a dry sump with an 8-quart tank.
• Drivetrain. A strengthened six-speed with its own cooling pump, a bigger ring and pinion, stronger half-shafts, and coolers for the oil, gearbox, axle and steering.
• Brakes and tires. Cross-drilled 14-inch front rotors with red six-piston calipers, 13.4-inch rears with four pistons, and run-flat tires, with no spare or jack.
• Body. 3 inches wider than other Corvettes, with the battery moved to the back for better weight distribution.

GM’s own documents vary: the 2006 fact file says 475 lb-ft, not 470. And no C6 Z06 is supercharged: GM’s spec sheet for the LS7 crate engine lists it as naturally aspirated.

Production fell hard from 2009, the year the ZR1 arrived.

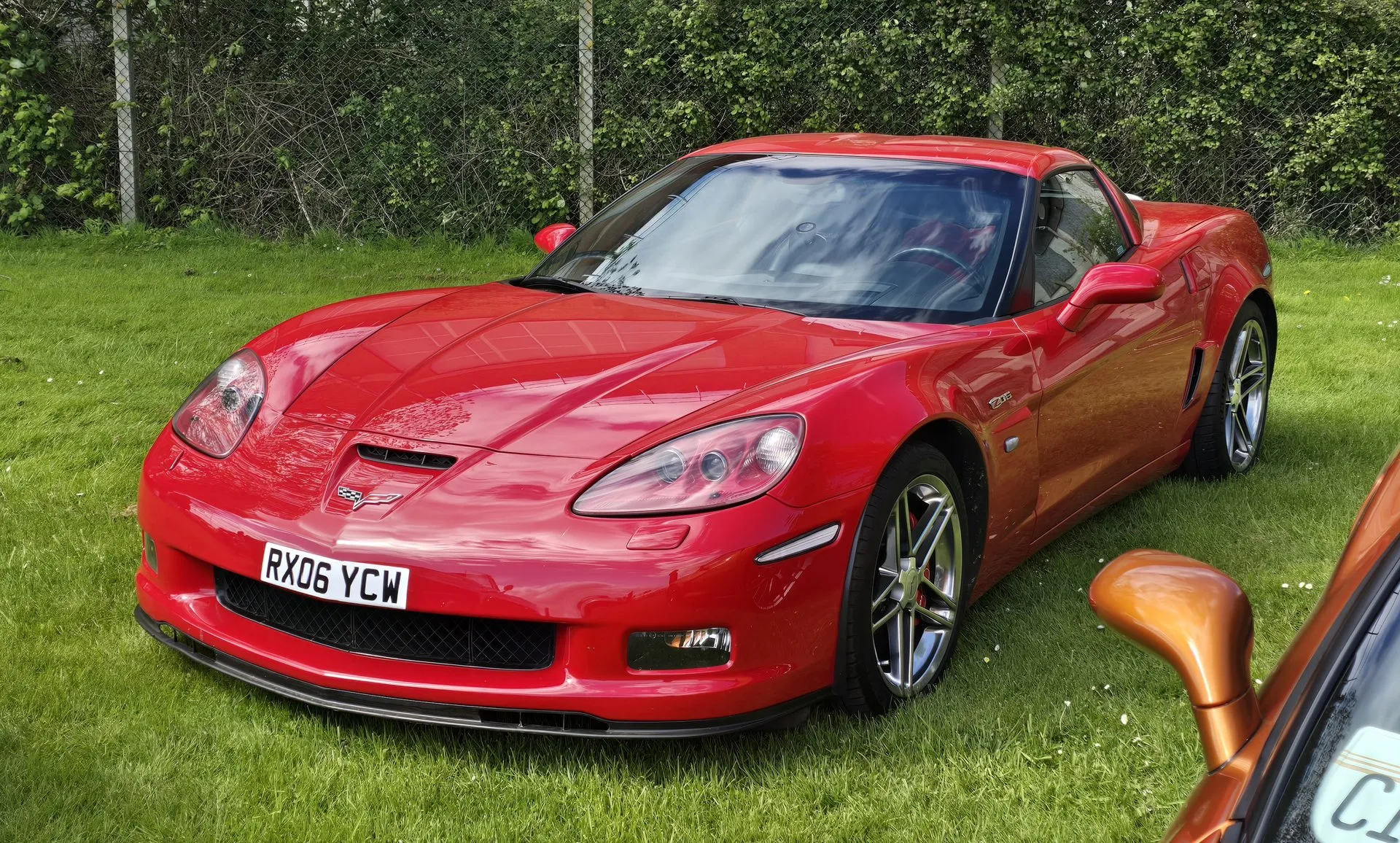

2006. The Z06 arrives at $65,800. Its roof, and the 2007’s, is in a recall (see Other known problems).

2007. The biggest year: 8,159 built, 399 of them Ron Fellows Special Editions (GM option code Z33). GM bulletin 4156A covers a possible broken rocker arm: Halverson reports that about 1,500 rockers with faulty needle bearings went into LS7s assembled from January to late July 2007, and in 2012 Katech, an engine builder, advised new GM rockers on any 2007.

2008. The Tremec TR6060 replaces the T56, and GM built 505 Crystal Red Special Editions (Z44).

2009. The dry sump grows from 8 to 10.5 quarts, shared with the new ZR1. New “spider” wheels, revised ABS and traction control, and standard variable-ratio steering.

2010. Launch control and side airbags become standard. Only 518 built.

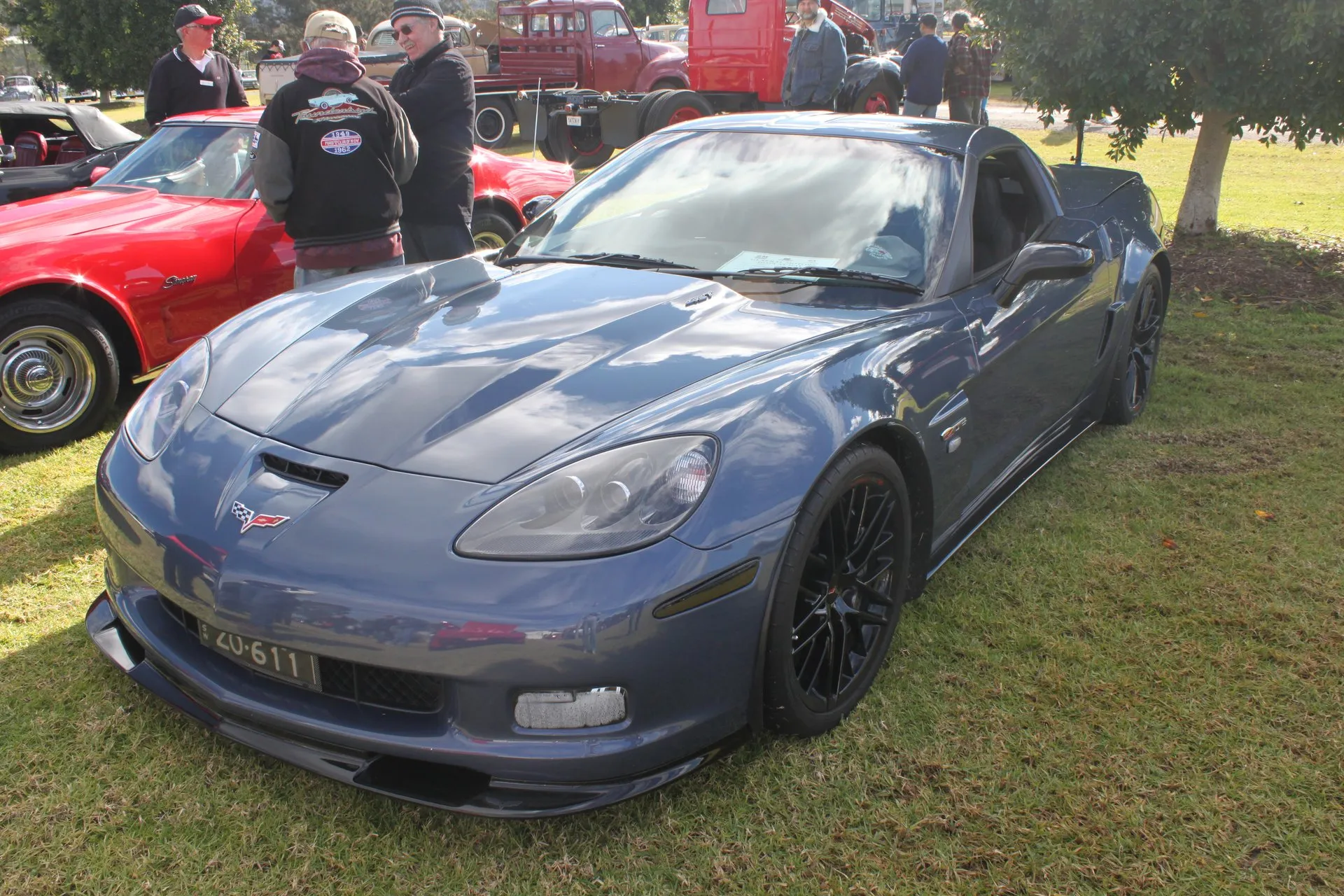

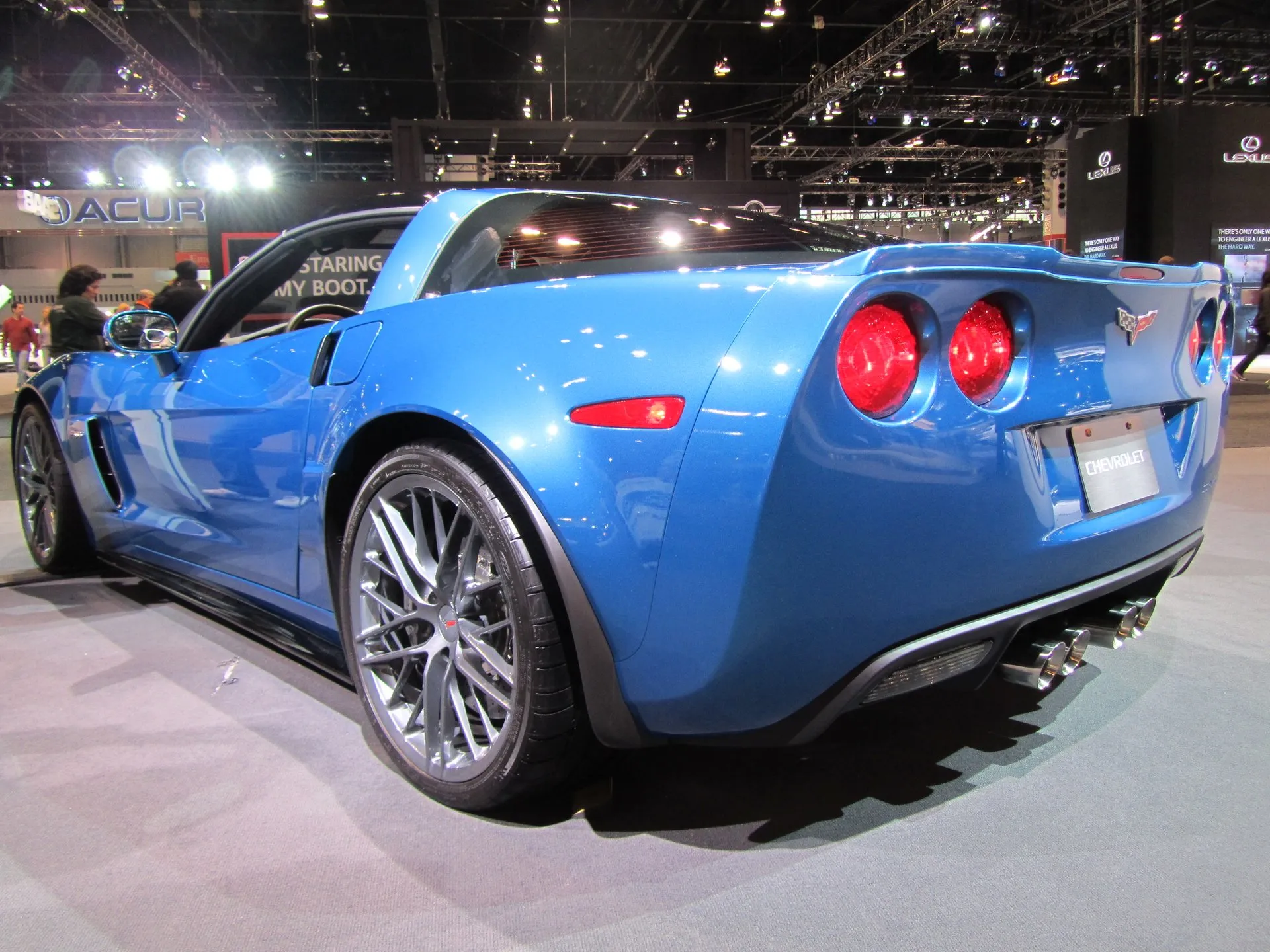

2011. The Z07 package ($9,495) adds Brembo carbon ceramic brakes, Magnetic Ride, Michelin Pilot Sport 2 tires and Competition Gray 20-spoke wheels, 19 x 10 front and 20 x 12 rear; 540 were built. The Carbon Limited Edition put that hardware under Inferno Orange or Supersonic Blue paint with black wheels and a raised carbon hood; GM planned up to 500 and built 252. The CFZ package added carbon fiber rockers, splitter and roof panel.

2012. New seats and steering wheel. The Z07 moves to Michelin Pilot Sport Cup Zero Pressure tires on lighter wheels, and GM quotes a 7:22.7 Nürburgring lap for it. Performance Traction Management arrives, and 195 Z06s get the Centennial Edition.

2013. The last C6: 471 built, 103 with the 60th Anniversary package. The 427 Convertible Collector Edition shares the LS7 and GM’s valve guide bulletin, but it’s a convertible, not a Z06.

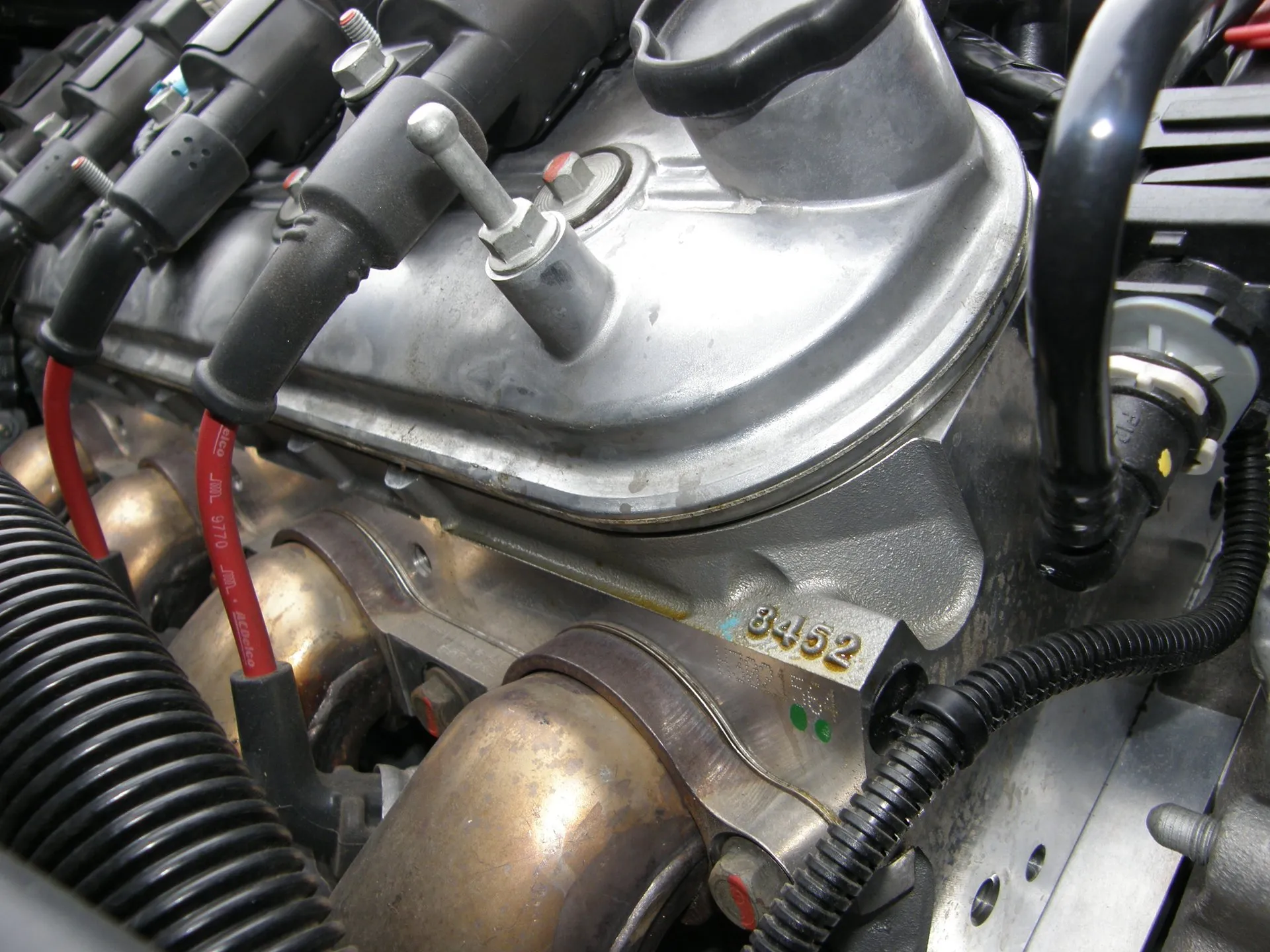

Each valve rides in a guide, a sleeve in the cylinder head. GM’s production clearance between valve stem and guide is 0.001–0.0026 in, and its service limit is 0.0037 in, per the LS7 specifications in GM’s 2006 kit. Past that, the valve rocks, and the worst case owners describe is its head snapping off and dropping into the running engine, usually an exhaust valve. It’s a different problem from the C5 (1997–2004) Z06’s broken valve springs, covered in the C5 Z06 guide.

What GM said. On October 11, 2012, Chevrolet Customer Service posted on CorvetteForum (opens in new tab) that the issue affected a small number of 2008–2011 Z06s, came from a machining error at GM’s cylinder head supplier, and was contained in February 2011 with 100% inspection of all heads. It named valvetrain noise as the most common complaint, warned of engine failure if the problem was left alone, and gave no rate. GM engineers at the Corvettes at Carlisle event that August had put warranty head problems at a peak of 6.5 per 1,000 engines, as reported by Halverson and paraphrased by a forum member.

What GM did. Bulletin 13-06-01-001 (January 2013) told dealers that paid warranty claims for LS7 valve and head work were “very low”, that some valvetrain noise is normal, and that modifications speed up guide wear. In March 2015, GM Powertrain restated the suspect period to Halverson as July 2008 to March 2009, for guides with an oversize bore, and released no period for guides machined off-center from the valve seat. The bulletin covered out-of-limit wear under GM’s powertrain warranty, 5 years or 100,000 miles on 2007–2013 cars, which ran out years ago on every C6 Z06. By this site’s search, NHTSA’s files hold no recall, special coverage or campaign for LS7 valve guides, valves or heads.

What the courts decided. Not whether the engines were defective. In California, the owners’ suit (Pilgrim v. General Motors, filed 2015) ended in summary judgment for GM, which the Ninth Circuit affirmed in December 2021 (opens in new tab) because the 17 appealing owners’ only defect evidence, expert declarations, had been disclosed late and was inadmissible. In Michigan, a second suit was denied class certification in September 2023, and its named owners settled their own claims on confidential terms in 2024. No class was ever certified, so no other owner got anything.

What the complaint records show. NHTSA doesn’t separate the Z06, so this site read every 2006–2013 Corvette complaint narrative (opens in new tab) that mentions valves, guides, heads, rockers or lifters. By that reading, 136 describe an LS7-type valve problem: 46 a valve breaking or dropping or a valvetrain engine failure, 65 guides measured worn or heads repaired before anything broke, 21 a concern only, and 4 copied template text. All but six are on 2006–2009 cars, but those years built more than nine in ten C6 Z06s and have the most years on the road. The counts aren’t a rate: 49 were filed in 2015, around a forum call to file, 20 more between March and June 2020, and some owners filed twice. Low miles are no shield: one 2013 owner reported guides out of spec at 4,000 miles, and a 2007 dropped a valve at 12,600.

What owners counted. A CorvetteForum registry (opens in new tab) listed 199 cars with at least one guide at or over GM’s limit by January 2015, mostly 2006–2009 cars, and its compiler said about 89% of the cars tested and reported came out of spec. Those owners chose to test, many probably with the on-car method that can overstate wear (see How to check an LS7, and what the fix costs).

What causes it. Still argued. The leading explanation, from Katech, Halverson and machinists, is head machining that left guides off-center from the valve seats; Katech also faults a rough coating on the titanium intake valves. Katech, which sells the repair, has moved: in 2012 it had never seen a valve failure from worn guides, and by 2017 it extended the problem to every LS7 from 2006 on.

Where that leaves a buyer. No one has published how many LS7s have dropped a valve, and this site’s reading is that the odds for any one car are small but unknown. The stakes aren’t: GM’s account of the affected years has changed, Katech and owners say no year is exempt, and a dropped valve meant $16,000–22,000 in the bills and quotes owners gave NHTSA. No C6 Z06 is cleared until someone measures it.

Paper first. The car to buy comes with a receipt naming the shop, the date, the guides and valves fitted, and the measurements taken with the heads off.

Symptoms prove little. Owners describe a metallic tick or rising oil use on some cars and no warning at all on others, and Katech found badly worn engines with no symptoms. A quiet LS7 isn’t a cleared one.

The wiggle test. This on-car check rocks each valve against a dial indicator with the heads on, the springs off and the cylinder held under shop air: a shop job, not a driveway one. Halverson’s 2014 look at the method (opens in new tab) found that an indicator touching near the valve tip exaggerates clearance: one common setup read 0.0032–0.004 in on a guide a bore gauge put at 0.0026 in, inside GM’s limit. He warned that a careless or dishonest setup could sell an owner a $3,000 head job he didn’t need, and GM dropped the test in March 2015. A high reading is a reason to pull the heads; a seller’s passing printout is no substitute for receipts.

Heads off. GM’s revised bulletin, 13-06-01-001A (opens in new tab), measures each valve stem with a micrometer and each guide bore with a ball gauge, and Katech calls disassembly the only proper check.

The fix. Shops replace the factory powdered-metal guides with bronze or manganese-bronze ones and cut a valve job centered on them, often with new one-piece stainless exhaust valves; whether to reuse the titanium intakes is argued. Aftermarket heads are the other route. Some owners report reworked heads wearing again within 20,000–30,000 miles, and no data settles it.

What it costs. Prices posted on CorvetteForum and told to NHTSA, by year:

The 2025 quote, for a 2007 near Phoenix, priced reworked West Coast Cylinder Heads at $2,620 (opens in new tab) with bronze guides, stainless exhaust valves, new springs and port work, plus $766 for lifters and $1,700 for labor.

Pricing the risk. This site’s rule: price a car without head receipts as if it needs the job, and expect a documented car to cost about that much more. On 2024–2025 figures that’s $3,000–6,000, more for a modified car. One 2009 owner called his roughly $3,000 head job insurance against a $20,000 engine (2023).

These records apply to a C6 Z06 too:

• Roof, 2006–2007. Recall 09V491000 (opens in new tab) names the 2006–2007 Z06: the roof panel’s adhesive can let go, and complete separation could let the roof come off. At least three 2006 Z06 owners told NHTSA theirs did, at speed. GM’s remedy, from April 2010, was a new-design panel.
• Active Handling. Recall 10V172000 covers cars built through January 2006 with the optional telescoping column, which can, rarely, set “Service Active Handling” and apply a brake. About 15 Z06-named complaints describe the system stepping in or a brake grabbing.
• Low beams. A fuse box wire can break and kill the low beams on a warm engine: recall 14V251000 on 2005–2007 cars, program 14203 on certain 2008–2013 cars.
• Fuel smell. Special Coverage 15682 covers fuel odor or drips at the left-hand fuel pump module on 2007–2013 Corvettes, the LS7 included.
• Clutch. Special Coverage 14717 covers 2005–2013 manual Corvettes, LS7 included, whose pedal may not return and which may start in gear; a 2008 Z06 owner told NHTSA his did, and lunged. Like 15682 and the airbag-light coverage 15643, it ran 10 years or 120,000 miles: a record of the fault, not a free repair.
• Oil in the intake. GM’s PIP3786D ties a check engine light and lost power above 4,000 rpm, with oil in the air cleaner, to a wrong oil level or a restricted crankcase ventilation (PCV) system.
• Rear axle and balancer. Bulletin 070420002A covers chatter on turns in 2005–2008 cars, fixed with fresh differential fluid. GM’s PIP4750G calls an apparent balancer wobble on the LS7 an optical illusion in most cases; replace it only past 0.40 mm (0.0157 in) of runout.
• Hatch hinges. Recall 11V491000 covers 2011–2012 cars GM lists only as “Corvette Coupe”, without saying whether Z06s are included: run the VIN.
• After an engine replacement. GM bulletin 22-NA-074 calls for a new oil cooler, lines and tank when debris has gone through the oiling system. Ask for those receipts too.

1. That it’s an LS7 car. The VIN’s 8th character is E for the LS7, per GM’s 2006 kit and NHTSA’s VIN decoder for later years. A base C6 wearing Z06 badges fails. (A 2013 427 Convertible also has an E.)
2. Head receipts, or a heads-off inspection priced into the deal.
3. Oil level, the GM way: engine fully warm (175°F, 80°C), switched off, a 5–20 minute wait, level ground, per the 2013 owner’s manual. The oil lives in a separate tank, so a cold, long-parked car can show none on the dipstick; GM’s 2006 manual calls that normal and says not to add any. Ask how much oil it uses.
4. The air box. Oil in it points to an overfill or a PCV fault.
5. Fuel smell after a fill above half a tank.
6. A clutch pedal that returns fully, every time.
7. Warning lights. No Active Handling, airbag or check engine light, and low beams that work on a warm engine.
8. The roof on a 2006 or 2007: no snapping or bounce, a dry headliner, recall paperwork.
9. Open recalls, checked by VIN at a dealer.
10. Modifications. Eight of the 21 recent Bring a Trailer sales were described as modified, and GM says modifications speed up guide wear. Ask who did the work.
11. Tires. Run-flats, with no spare or jack: check their age.
12. A pre-purchase inspection on a lift, by a shop that knows the LS7.

Bring a Trailer’s 24 most recent completed C6 Z06 listings, from June 15 to September 30, 2026, included 23 cars. Twenty-one sold, from $38,000 to $80,500, at a median of $50,300 by this site’s count; the 13 not described as modified had a median of $46,856. Auction cars skew clean and low-mile. A sample (2LZ and 3LZ are GM equipment packages):

Other figures agree on the middle. classic.com’s Z06 page averaged $51,390 when archived in February 2026. In December 2025, Hagerty put the 2006–2013 Z06 on its 2026 Bull Market list of cars it expects to rise in value, at $55,900 in #2 condition (#1 is best), and Corvette Blogger reported Hagerty’s top three condition values up more than 8% since October 2024. A new 2006 Z06 listed at $65,800.

Fuel. Premium only, at 18 mpg combined by EPA’s current figures.

Oil. The 2013 manual calls for dexos1 5W-30 and recommends Mobil 1 for dry-sump engines. A change means two drain plugs and a refill through the tank.

Tires. A set ran $1,300–2,700 by a 2014 CorvetteForum FAQ. Get current prices.

Track days. GM wrote the track prep into the manual. The 2009 owner’s manual’s racing notes say to keep the oil at or near the upper mark, recommend brake fluid with a dry boiling point above 534°F and call for fresh rear axle fluid after every 24 hours of racing. Do that, then go find out why GM took this car to the Nürburgring.

Storage. The battery sits at the back; the Corvette battery guide, battery maintainer guide and car cover guide cover the C6.

Buy the paperwork, then the car. The pick is any C6 Z06 with receipts for heads-off work by a shop you can call, stock or lightly modified, with service records to match. Model year comes second: between two documented cars, take a 2009 or later for the 10.5-quart oil tank, or a 2010 or later for launch control and side airbags too. Later cars drew fewer valve complaints, from far fewer cars, and no year is exempt.

The budget path is a 2006–2008 near the bottom of the 2026 auction range, around $38,000–40,000, with $3,000–6,000 set aside for the heads and, on a 2006 or 2007, the roof recall in the paperwork. Pay extra for a Z07 or Carbon Limited Edition only for the track hardware or the rarity. Walk away from a seller who won’t allow an inspection, a car without records, or a modified car nobody can document. If the head question takes the fun out of it, owners steer some shoppers to a Grand Sport, covered in the C6 buyer’s guide.

Then remember what the money buys. Car and Driver’s first test, as Corvette Blogger recounts it, ran 3.6 seconds to 60 mph and 17.5 to 150, on par with a $153,345 Ford GT and a $180,785 Ferrari F430. The median auction Z06 now costs about a third of that Ford GT’s list price. A 7.0-liter pushrod V8 that revs to 7,000 rpm, three pedals and a roof that stays put: that’s America’s sports car at its rawest. The next Z06 is in the C7 (2014–2019) Z06 guide, the ZR1 in the C6 ZR1 guide, and the one before in the C5 Z06 guide.
