C6 Corvette ZR1 buyer's guide (2009–2013): brakes, clutch, fuel pump and what to pay

The Z06 was already the hard-core C6, with a 505 hp, 7.0-liter LS7. The ZR1 kept its manual-only rule and went further almost everywhere else, per GM’s 2009 ZR1 release (opens in new tab) and press guides:

• Engine. The LS9: 6.2 liters, an Eaton R2300 supercharger (2.3 liters, 10.5 psi maximum boost) and a liquid-to-air intercooler on its own coolant circuit. Forged crankshaft, titanium connecting rods and intake valves, each engine hand-assembled at GM’s Performance Build Center in Wixom, Michigan. Output: 638 hp at 6,500 rpm and 604 lb-ft at 3,800 rpm.
• Drivetrain. A Tremec TR6060 six-speed with a 260 mm dual-disc clutch, and asymmetric half-shafts, 33 mm right and 40 mm left.
• Brakes. Drilled Brembo carbon-ceramic rotors, 15.5 in (394 mm) front and 15.0 in (380 mm) rear, with blue six-piston front and four-piston rear calipers. GM says they save about 11 lb per corner over iron.
• Chassis, wheels and tires. Magnetic Selective Ride Control dampers standard, and 19 x 10 in front and 20 x 12 in rear wheels on Michelin Pilot Sport 2 run-flats (285/30ZR19 and 335/25ZR20). No spare.

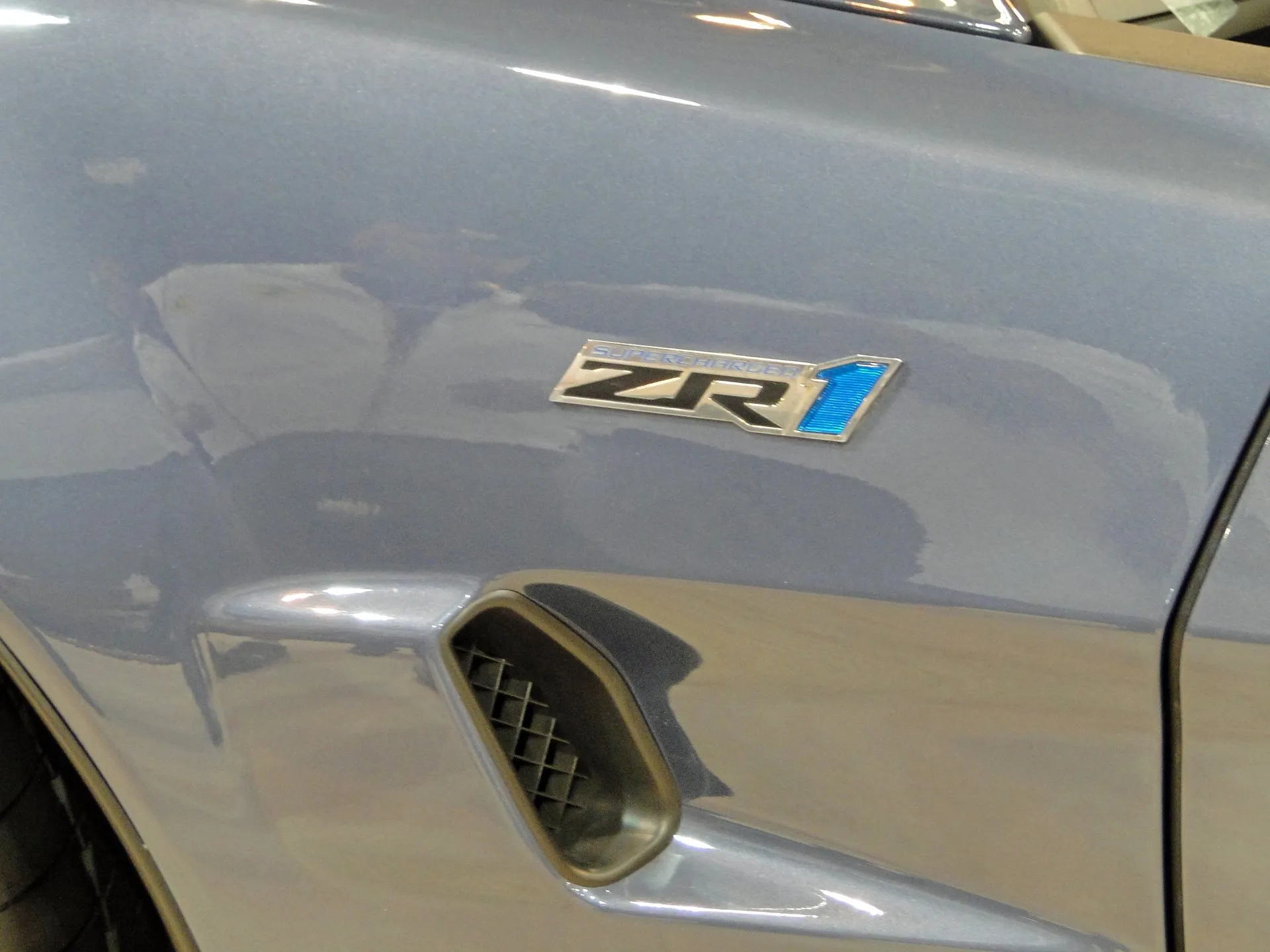

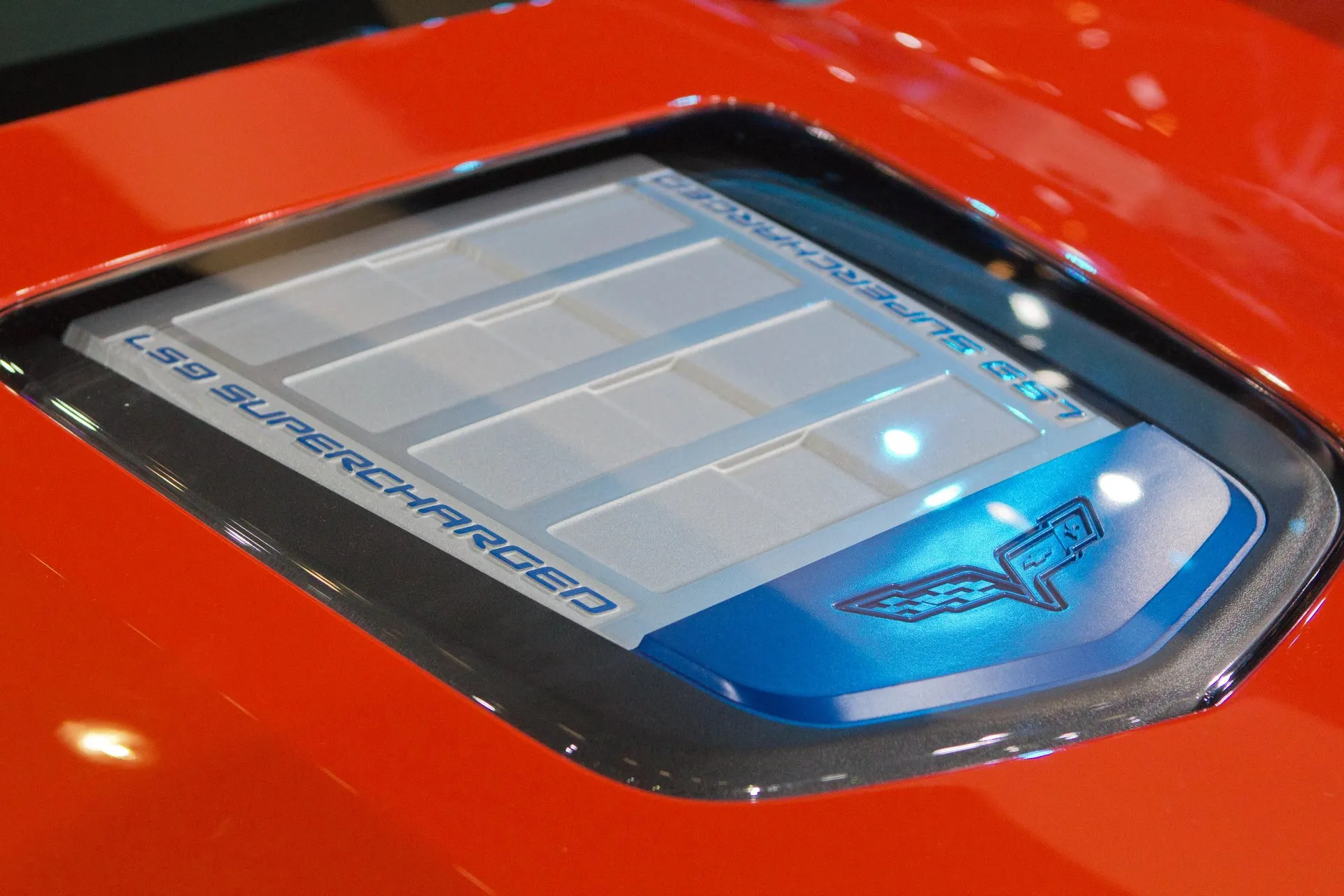

• Body. A carbon fiber hood with a window over the intercooler, carbon front fenders with twin ports, bare carbon on the roof, roof bow, rockers and splitter under a UV-resistant clear coat, and a full-width spoiler.
• Cabin. A boost gauge and a 220 mph speedometer. The base 1ZR has Z06-style lightweight seats. The 3ZR package ($10,000 in 2009, when it also brought the side air bags) adds power heated leather seats, navigation, Bose audio, Bluetooth and a power telescoping column, and 1,202 of 2009’s 1,415 cars had it.

GM’s 2009 releases tie the name to the 1990 ZR-1, a C4 (1984–1996) covered in the C4 buyer’s guide. Hagerty reports that the project’s internal name was Blue Devil.

How fast. GM quoted 0–60 mph in 3.4 s, 0–100 in 7.0 s, the quarter mile in 11.3 s at 131 mph and a top speed of 205 mph, which MotorTrend says was a two-way average at Papenburg, Germany. Car and Driver and MotorTrend measured 0–60 in 3.3–3.5 s and quarter miles of 11.2–11.5 s, and MotorTrend saw 200.5 mph, wind-corrected. Car and Driver’s 142 ft stop from 70 mph was the shortest it had then recorded for a production car.

ZR1 or Z06? The ZR1, on every figure published for both. GM put it at 7.0 s to 100 mph against the Z06’s 7.9. Car and Driver’s October 2008 three-car test had it at 3.4 s to 60 against 3.6, 142 ft from 70 mph against 150, and 2.1 s a lap quicker at Grattan, and found it easier to drive at the limit and to live with.

2009. $103,300 with destination ($850 of it), plus a $1,700 gas guzzler tax and $2,000 for chrome wheels (1,132 cars). Cyber Gray led the colors (502 cars), and one car was LeMans Blue. GM’s clutch program 09160 covered 297 mid-year cars (see The dual-disc clutch and GM’s discontinued part).

2010. The biggest year, with 1,577 built. GM added Performance Traction Management (PTM), which it says optimizes traction for more consistent track performance, plus launch control and standard side air bags. (GM’s 2012 press guide wrongly calls it new for 2012.) Torch Red, a Cashmere interior and Competition Gray wheels (123 cars) arrived.

2011. Inferno Orange (46 cars), Supersonic Blue (93), contrasting headlamp housings and custom stitching. The Engine Build Experience (option PBC, $5,800) let 11 buyers help assemble their own LS9 at Wixom.

2012. New seats with bigger bolsters, a new steering wheel and a choice of caliper colors. The standard gearbox became a taller-geared six-speed (ME2), and the close-ratio box moved into the new PDE package with Michelin Pilot Sport Cup tires, lighter black Cup-style wheels and a full-width racing spoiler. A PDE car lapped the Nürburgring in 7:19.63 for GM in 2011. The Centennial Edition (206 cars) wore Carbon Flash Metallic paint and satin black wheels. GM built 404, the rarest year, and 184 had PDE.

2013. The last C6 year. The 60th Anniversary Design Package (138 cars) brought Arctic White paint, a Twilight Blue interior, gray calipers and optional Silver Blue stripes. Black-painted wheels and Night Race Blue paint (54 cars) were new, and only 7 cars were Inferno Orange. GM built 482: 291 with the standard gearbox and 191 with the close-ratio box.

GM’s 2009 release said the rotors should last for the life of the vehicle “when used in normal driving,” and its dealer service guide says most owners will never replace them. Track use wears them, and GM never treated that wear as a warranty item.

The rules come from GM’s November 2008 TechLink (opens in new tab) and dealer service guide:

• Weigh, don’t measure. The rotors can’t be machined. Each is weighed on GM scale CH-48897 at every pad change against the discard weight marked on it. New thickness is 36 mm front and 34 mm rear; discard is 35.5 and 33.5 mm.
• Pads. 10 mm new, replaced at 2 mm. No squealer: a sensor puts CHANGE BRAKE PADS on the display, and the 2010 owner’s manual says to inspect them whenever the tires are off.
• Chips. Up to three edge chips are acceptable, each no more than 1 mm wide or deep and 10 mm long. Anything bigger, or contact with a pad backing plate, means a new rotor. A wheel knocked against the edge can chip it, so GM calls for rotor protectors before a wheel comes off.
• No cleaners. Wheel, tire and brake cleaner must never touch the rotors.

On the street, owners bear GM out: two report original rotors near 60,000 miles (2016 and 2020). On track, one owner in 2013 got about 10 track days from front pads and five sets of pads from a set of rotors, and a 2020 track driver used up $3,000 of front rotors in a season, then switched to iron, the trackers’ budget path. GM’s PIC6162D calls for track brake fluid with a dry boiling point above 534°F (279°C).

No current front rotor price turned up. When buying, treat rotors near their marked discard weight as due: at those October 2026 dealer web prices, a pair of rears alone is about $3,750 before pads and labor (this site’s arithmetic). No recorded weights, no full price.

GM’s dealer service guide says the ZR1’s 260 mm twin-plate clutch doesn’t adjust itself, so pedal effort rises as it wears. GM calls that normal, and clutch wear was never a warranty item: a heavy pedal means a worn clutch, and the bill is yours.

No new GM clutch. On October 6, 2026, two GM-dealer parts sites listed the ZR1 clutch assembly (24237568, OEM) and the number that replaced it, 24260226, as discontinued. A worn clutch now means an aftermarket twin-disc unit or a used or remanufactured part, and this guide found no dated price for either. Get a quote before buying a car with a heavy pedal, and take it off the price.

The 2009 campaign. GM’s program 09160 (opens in new tab) (July 2009) covered 2009 ZR1s whose clutch damper spring could fracture, causing gear rattle or hard shifting and, if ignored, transmission damage. Dealers fitted a new clutch assembly. It covered VINs ending 95800667 through 95801069, though GM counted only 297 involved cars, and ended July 31, 2010.

Hydraulics. GM’s Special Coverage 14717 (2015) covers 2005–2013 manual Corvettes, ZR1s included, whose clutch pedal may not return, letting the car start in gear. The fix is a revised master cylinder, and the 10-year/120,000-mile coverage has expired for virtually every car. Two ZR1 complaints in NHTSA’s files describe it, including a 2009 whose pedal stayed down at about 70 mph at 7,000 miles. GM’s schedule calls for a dealer flush of the clutch fluid every two years.

GM’s Special Coverage 15682 (opens in new tab) covers 2007–2013 Corvettes, excluding no model, for fuel odor, drips under the left tank above half full or a check engine light from a leak at the left fuel pump module’s flange. The fix was a new left module, and the 10-year/120,000-mile coverage has expired for virtually every car. Three ZR1 complaints in NHTSA’s files (this site’s count; see Other known problems) describe fuel smell or a leak, among them a 2013 whose dealer confirmed a leaking pump assembly, over $5,000 to fix (2025).

The ZR1 can’t borrow a Z06’s part. GM gave it a dual-pressure fuel system, and owners explain that its brushless pump runs through its own control module, so a Z06 or aftermarket pump needs module or tune changes. Owners reported the ZR1 module (GM 19420818, OEM) on national backorder for over a year in 2023–2024; one car sat at a dealer from April 2023 waiting for one. On October 6, 2026, two GM-dealer parts sites still listed it as unavailable because of a manufacturer supply shortage (MSRP $2,836.68).

When buying, check for fuel smell after a fill above half a tank and ask whether the module has been replaced. A ZR1 that smells of fuel is a bigger gamble than a Z06 that does.

On the Z06’s LS7, worn valve guides (the sleeves the valves slide in) are the defining buyer question; the C6 Z06 guide covers it. The LS9’s record is thinner.

• GM. NHTSA’s files hold no recall, special coverage or bulletin for LS9 guides. GM’s LS7 bulletin, 13-06-01-001A, doesn’t cover the ZR1.
• Different heads. Technical writer Hib Halverson reported in 2015, after meeting GM Powertrain engineers, that LS9 heads came from GM’s Silao, Mexico plant, never from Linamar, which made the LS7’s.
• Katech, an engine builder that sells a guide repair, says the problem afflicted the LS9 too.
• Owners have measured worn LS9 guides with the heads off, some at low miles (a 2010 at 1,300 never-tracked miles, in 2012). The owner who kept a list of LS9 valvetrain reports in 2014–2015 called incidents few and knew of one LS9 that had dropped a valve; a 2021 poster says one stock LS9 was documented doing so, in 2012. No ZR1 complaint in NHTSA’s files mentions valves.

The bad day looks like one stock 2011 in 2016: at 33,500 miles, about 5,000 on track, it had worn guides and valves plus head damage from a piece broken off the supercharger’s rotors, all replaced under warranty. No GM bulletin covers the LS9 supercharger.

In 2021 one owner paid about $2,800 for ported heads with upgraded guides, doing the labor himself, and another got a $2,400 quote. The site’s call: less documented risk than the LS7. Ask for head records, and on a car you’ll drive hard, budget for a heads-off inspection.

NHTSA’s complaint files (opens in new tab) don’t separate the ZR1. By this site’s count, using the VIN’s engine code (R for 2009, T for 2010–2013) or a narrative naming the car, 8 of the 459 complaints for 2009–2013 Corvettes are ZR1s. Seven describe a defect: fuel smell or leaks 3, clutch hydraulics 2 and “Service Active Handling” messages 2. Twenty-five records lack a VIN, so read these as failure modes, not a rate. No recall covers the ZR1 alone.

Intercooler pump. The intercooler has its own coolant (5.2 qt from 2010), pump, relay and fuse. Owners chasing code P023A or a dead pump have traced it to arcing at the underhood fuse box connector, the relay, low coolant or trapped air, and the 2010 owner’s manual calls the drain and fill a dealer job. No GM bulletin covers it.

Catalytic converters, 2009–2011. For a service engine soon light with codes P0420 or P0430, GM bulletin 14-06-04-001A (opens in new tab) (2014) has dealers fit 2012–2013 converter and exhaust pipes and reprogram the engine computer, under the 8-year/80,000-mile emission warranty. By this site’s arithmetic, that has run out on every 2009–2011 car.

Oil and noises. GM’s PIP3786D blames a service engine soon light, rough running or lost power above 4,000 rpm on oil pushed into the intake by a wrong oil level or a restricted PCV (crankcase ventilation) system. Bulletin 08-06-01-019A traces a rattle at 1,200–2,200 rpm to a loose tube in the dry-sump oil tank. PIC5202E puts a slight shake at 72–78 mph down to tires flat-spotted while parked, which should clear after 30 minutes of driving.

Carbon panels. Owners report clear coat flaking around a chip on a roof (2011) and a cracked clear on a splitter (2013), and GM’s dealer guide says a deep scratch means a new panel.

Shared C6 items. The low-beam fix (program 14203) and the seat-connector airbag light (Special Coverage 15643) apply here too; the C6 buyer’s guide covers both.

1. That it’s a real ZR1. The VIN’s 8th character is R on a 2009 and T on a 2010–2013, and the last digits are its build number for the year: per GM, a VIN ending 0150 is the 150th built. Badges can be bought.
2. Recalls and programs. Recall 11V491000 (opens in new tab) replaced rear hatch hinges on 2011–2012 coupes built January 24 to September 1, 2011, and names no trim, so have a dealer check any 2011 or 2012 by VIN. On a 2009, check program 09160.
3. Brakes. Recorded rotor weights, edges within GM’s chip limits, pads above 2 mm.
4. Clutch. Pedal effort, clean engagement, a pedal that returns every time, and receipts.
5. Fuel. No smell after a fill above half a tank, nothing wet under the left tank, and any record of a new pump module.
6. Intercooler. The pump running (owners listen or feel for it), coolant at the driver-side bleeder valve on a cool system (the owner’s manual check), no P023A history.
7. Oil. The dry-sump check from the 2010 owner’s manual: engine warm (at least 175°F/80°C), engine off, wait 5 to 20 minutes, then read the dipstick in the oil tank (GM’s dealer documents say 5 to 15 minutes).
8. Heads. Records of head work, or an inspection priced in.
9. Carbon and clearance. Roof and splitter clear coat, a scraped splitter, and rocker extensions cracked by lifting without pucks. GM says the splitter costs about 1.5 in of ground clearance.
10. Tires and their age. Pilot Sport 2 run-flats (up to 50 miles at up to 55 mph with no air; there’s no spare) or, on PDE cars, Pilot Sport Cups, which the 2013 owner’s manual keeps off snow, ice and roads below 50°F (10°C).
11. Track use and modifications. GM’s dealer service guide (opens in new tab) says the ZR1 “was not designed, built or sold as a track car.” Ask how it was used and who modified it.
12. A pre-purchase inspection at a shop that knows ZR1s, lifted on pucks or ramps.

Bring a Trailer sold nine ZR1s from January 1 to October 6, 2026, for $88,500–$150,000, a median of $125,000 by this site’s count. Five of the seven with a stated mileage had under 5,000 miles: collector-car prices, not a market average.

Other guides sit lower. classic.com’s benchmark was $96,344 in May 2026, and Hagerty valued 2009–2011 ZR1s at $75,100 in #3 (“good”) condition, on value graphs dated October 2025 and January 2026 (#1 is best). This guide found no 2026 figure for a car with 60,000 miles or more.

The trend is up. Bring a Trailer’s ZR1 median went from $89,000 in 2024 to $94,250 in 2025, against two 2019 sales at $60,500 and $65,000. Hagerty said in May 2024 that the best ZR1s were appreciating and driver-quality cars holding steady. Rarity helps: GM built 4,684 in five years.

Fuel. Premium only: 91 octane or higher, 93 for best performance (2010 owner’s manual).

Oil. 10.5 qt of synthetic with the filter, two drain plugs (18 lb-ft, filter 22 lb-ft, per the 2013 owner’s manual), and the higher-burst UPF48R filter (12626224, OEM) that GM’s July 2008 TechLink requires on the LS9.

ZR1-only maintenance. An air filter every 25,000 miles, and an intercooler drain, flush and refill at 150,000 miles or 5 years, per the 2010 maintenance schedule. Wheel nuts take 100 lb-ft (140 N·m).

Everything else. The big items have their own sections. This guide found no sourced price for tires, shocks or insurance, so get quotes.

Storage. The battery is in the rear, with jump posts under the hood; the Corvette battery guide covers the C6 dry-sump cars, and a ZR1 that sits belongs on a battery maintainer.

The pick is a 2010 or 2011 3ZR with service records, recorded rotor weights, clean rotor edges, a clutch that engages cleanly and no fuel smell. Those years add PTM, launch control and standard side air bags to the 2009 car and keep the close-ratio gearbox, and 2010 is the most plentiful year.

For the track, hunt a 2012–2013 PDE car: Cup tires, the close-ratio box, the newer seats and the package behind GM’s 7:19.63 Nürburgring lap. Only 375 were built.

The budget path is a 2009 or a driven later car: the cheapest 2026 sales were a 4,900-mile 2009 at $88,500 and a 26,000-mile 2010 at $89,500.

Pay for records, not just low miles. Take money off for a heavy clutch pedal, since GM’s clutch is discontinued, and walk away from a car with no rotor history, a fuel smell (the pump module was still unavailable in October 2026) or modifications nobody can document.

Get it right and you own the C6 at full volume: 638 supercharged horsepower, a six-speed and a power-to-weight ratio GM put ahead of the Porsche 911 GT2 and the Ferrari 599, for less than GM charged in 2009 if you buy one that’s been driven. Take it to a track day, roll into the throttle in third out of a slow corner, and find out why. In 2009, America’s sports car had never gone further. For the cars on either side of it, see the C5 (1997–2004) Z06 and the C7 (2014–2019) Z06.
